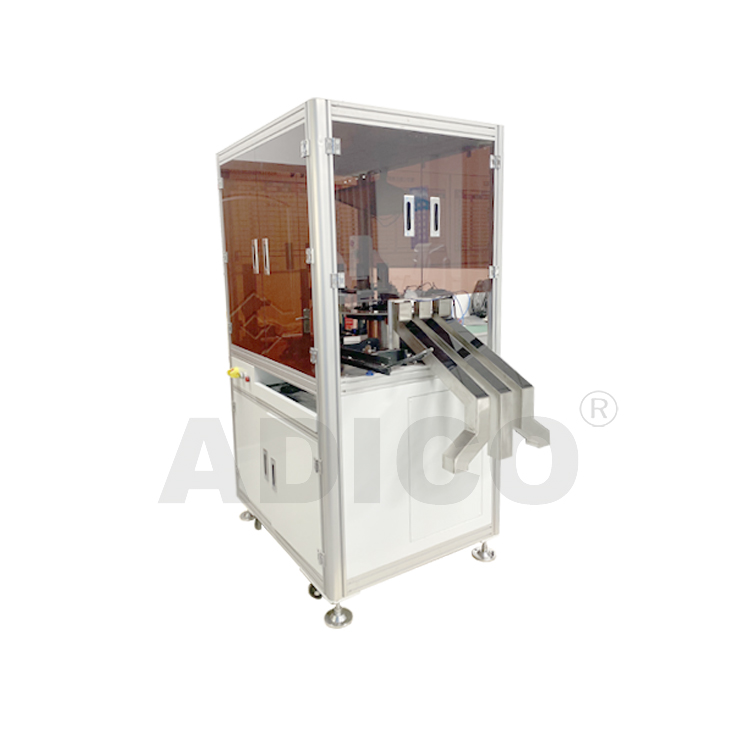

全自动筛选机

返回列表页

与振动盘上料机配合使用,具有快速,准确的优势。

在线咨询

咨询热线:0512-83555991

产品详情

工件尺寸

Workpiece Dimension

检测速度

Inspect Speed

硬件软件

Hardware & Software

最大外径:40mm 最大高度:30mm

Max OD Max height

检测精度

Inspect Accuracy

0.002mm—0.01mm

500—1500 pcs/min

选择配置

Selection Configuration

1*仰视相机+1*侧视相机+1*俯视相机 (根据具体检测项增减检测相机)

1*Bottom Camera+2*Side Camera+1*Top Camera(Customization by product)

硬件:巴斯勒、基恩士、欧姆龙、松下、SMC、FIM 等

Hardware:BASLER、KEYENCE、OMRON、Panasonic、SMC、FIM etc.

软件:自主研发的光学检测系统

Software:Self-R&D Vision Inspection system


技术参数

直观的用户界面,每个用户无需大量培训即可立即启动。

Simple: ADICO comes with an intuitive user interface that allows each user to start immediately

without extensive training.

灵活:操作员能够直接选择和调用预先配置的检测程序,无需繁琐的调试工作。

Flexible: Operators can directly select and recall pre-configured inspections without tedious

debugging.

庞大的数据库:超过400种的测量和测试工具,可用于创建特定产品的测试计划。

Huge database: More than 400 measurement and testing tools that can be used to create test plans

for specific products.

可追溯:所有数据和方案都会自动储存,可生成统计报告并记录工作流程,方便后续追溯。

Traceable: All data and solutions are automatically stored, generating statistical reports and

documenting workflows for subsequent traceability.

记忆功能强大:每次开机可以选择相应的产品型号,保留上次检测设置。

Powerful memory: Each time you switch on, you can select the corresponding product model and keep

the last detection settings.

耐用:软件不关机可长期运行六个月,保证OK品里100%是良品。

Durable: The software can be operated for 6 months without shutting down the software, ensuring

that 100% of the OK products are good.

远程维护&教学:Internet 上的可选远程维护功能可为客户参数设置提供快速的建议和支持。

Remote Maintenance & Tutorial: The optional Remote Maintenance feature on the Internet provides

quick advice and support for customer parameter settings.

权限设置:权限控制可实现不同级别的人员对系统实行不同权限的操作,有效降低因误操作带来的系统故障。

Privilege setting: privilege control can realize different privilege operations for different levels of

personnel, effectively reducing system failure caused by misoperation
